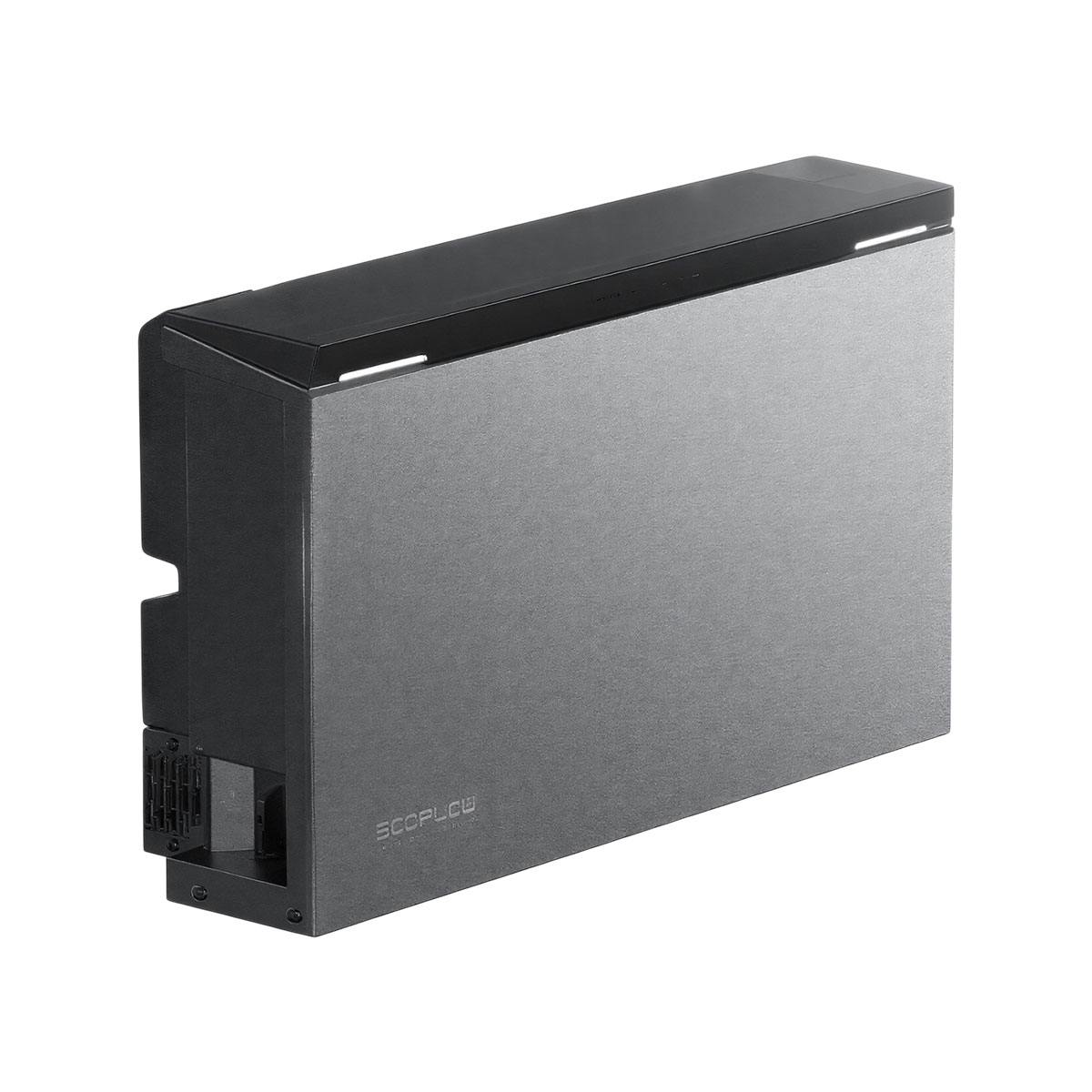

Ecoflow Ocean 2 3.68kW 1ph Hybrid Inverter

The Ocean 2 is Ecoflow’s new all-in-one modular inverter and battery system. The 3.68kW hybrid inverter is designed to be installed in a stack with up to 6 Ocean 2 5.02kWh batteries to offer a storage capacity of up to 30.12kWh.

Easy Installation

The Ocean 2 stackable system can be installed indoors or outdoors with a ultra compact design and a footprint of just 0.15m ² . The pre-integrated design allows for a quick installation with built in handles, captive side screws, and no side decorative covers.

Flexible modular design

Up to 6 Ocean 2 5.02kWh batteries can be stacked with an Ocean 2 Battery Base for a storage capacity of up to 30.12kWh.

The Ocean 2 5.02kW battery is cross generation compatible with the Power Ocean LFP batteries, allowing for seamless integration with existing Ecoflow systems. If a mix of Ocean 2 batteries and Power Ocean LFP batteries are used, only up to 4 batteries total can be combined in a stack.

Maximise Energy Savings

The Ecoflow HEMS Intelligent mode allows your system to automatically optimise when to charge and when to use stored energy, helping to reduce your electricity bills. By integrating dynamic electricity tariffs, the system can charge batteries at when prices are lowest and power your home from stored energy when prices are high.

Technical information

AC attributes

• Max power: 3.68kW
• Max current: 16A
• Number of phases:1

DC Attributes

• Max total PV power: 9.68kW
• Max input current: 18A per MPPT (1 x PV input), 16A per MPPT (2 x PV input)
• Max input voltage: 600V
• MPPT voltage range: 90-520V
• No. of MPPTs: 2
• Strings per MPPT: 1

System

• Dimensions: 679.6 x 280 x 182.7 mm
• Weight: 21.5kg
• IP rating: IP65
• Efficiency: 96.5%
