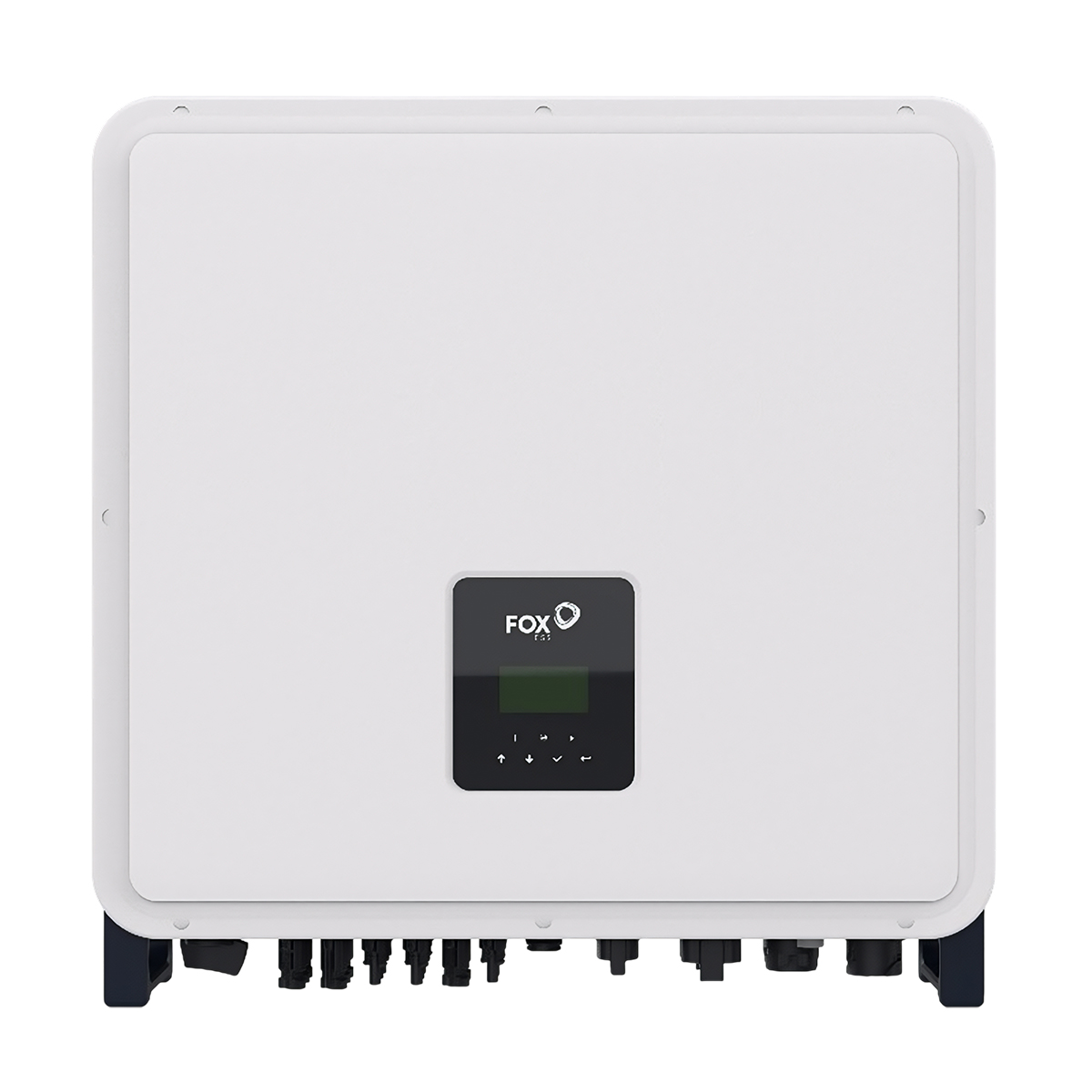

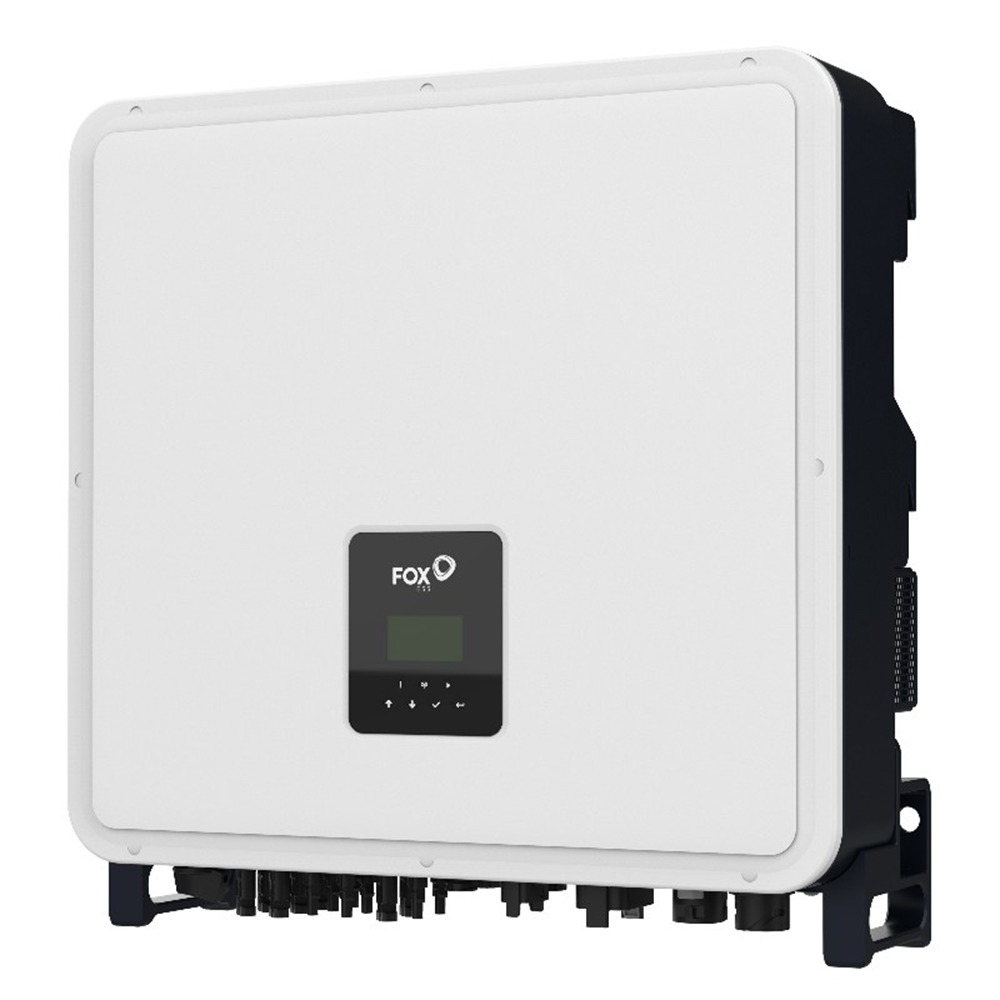

Fox ESS H3 Pro 30kW 3ph Hybrid Inverter

This H3 Pro 30 kW three phase hybrid inverter from Fox ESS can be utilised with the full range of Fox batteries, ECS & HV. Providing installers with a vast range of ESS solutions, check the battery sizing guide for max storage capacity.

Features:

• Comes with a WiFi dongle. LAN and 4G dongles are also available.
• CT clamp supplied. Modbus meter optional for preference or if the distance from inverter to grid supply exceeds 30m.
• EPS (Emergency Power Supply) inbuilt. Homeowners can keep the power on during power cuts with no effect to the inverter’s output power.
• IP65 protection rating. These inverters, along with their ECS batteries, can be installed outside saving space in the home. Natural cooling means no noisy fans and so this FOX ESS inverter really stands out as one of the best in its class.

AC attributes

• Nominal AC power: 30 kVA
• EPS output power: 30 kW
• Number of phases: 3

DC Attributes

• Max PV power: 15kW per MPPT
• Max Input Current: 32A
• Max Input Voltage: 1000V
• Start up voltage:160V
• No. of MPPTs: 3
• MPPT Range: 340 – 850V

System

• Max Efficiency: 97.80%
• IP Rating: IP65
• Weight: 52.5 kg
• Dimensions: 600*560*225 mm

Datasheet

Quick Guide

Manual

Factsheet

Battery Sizing Guide
