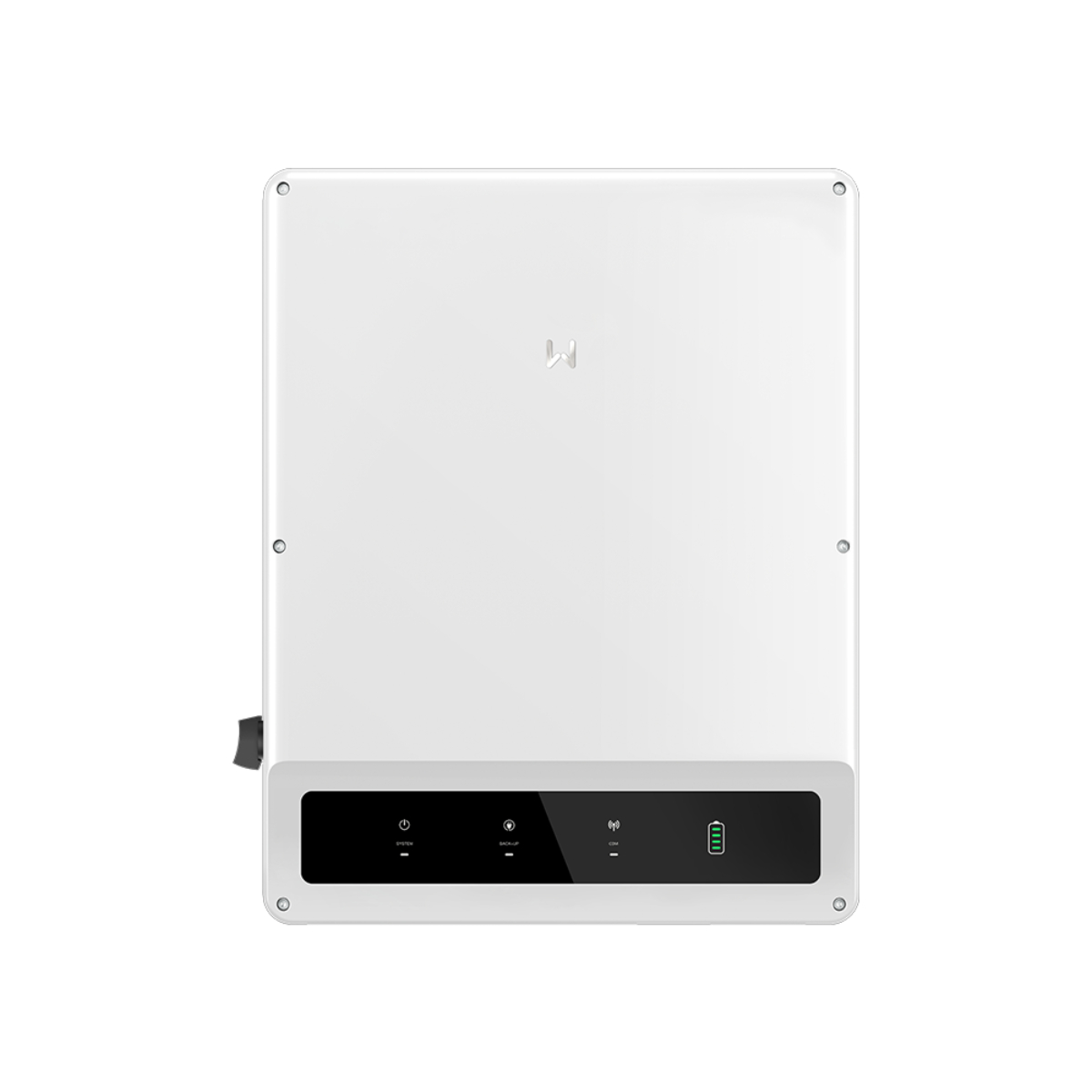

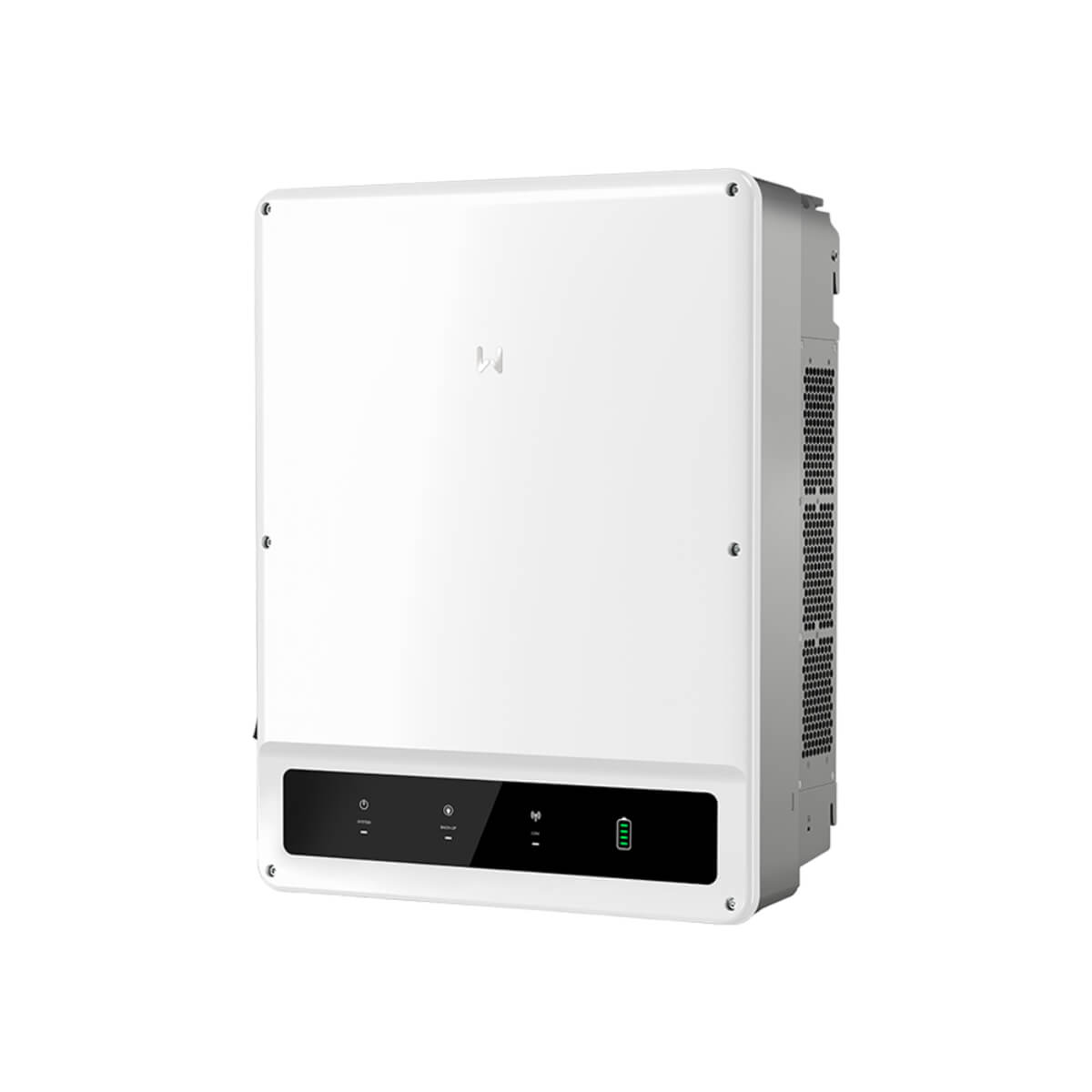

GoodWe 20kW 3Ph Hybrid Inverter with DC & AFCI
Original price was: £2,387.19.£1,989.32Current price is: £1,989.32. Ex. VAT
The GoodWe 20kW 3Ph Hybrid Inverter supports high-voltage energy storage, 150% DC oversizing, and AFCI for safety. It features integrated dry contacts and Type II SPD for optimized load management.
All GoodWe products are delivered in 5-10 working days.
156 in stock
GoodWe ET 15-30kW Series inverter is ideal for large residential or small commercial and industrial applications. As the core of the energy storage solution, the high-voltage inverters facilitate powerful energy backup and load management for optimized autonomy and reduced energy cost. The ET inverters also present peak shaving that balances power demand and grid power imported, to effectively reduce extra grid demand. Furthermore, thanks to dry contact in the inverter, external loads such as heat pumps can also be flexibly activated to optimize energy consumption. The series can be combined with a range of battery capacities and brands, including the GoodWe Lynx Home F.
Key Features
- Integrated dry contact for external loads
- Plug & Play installations
- Type II SPD on DC side
- Up to 150% DC input oversizing
- Power export limit
Superb Safety & Reliability
Type II surge protection on DC side is integrated to protect the inverter from lightning, providing upgraded safety and reliability for the PV system. With an optional Arc Fault Circuit Interrupter (AFCI), the inverter is able to detect arc fault failure, sending alarms through monitoring systems and breaking the circuit simultaneously.
High Generation and Optimized Consumption
The ET Series has been improved for compatibility with high-power modules, with a maximum of 15A input current per string. The 150% DC input oversizing and 98.0% maximum efficiency, drive your inverter to its full capacity to increase your power output in lower solar radiation conditions.
| Model | GW20K-ET |
|---|---|
| Max. Input Current per MPPT (A) | 30 |
| Battery Voltage Range (V) | 200~800 |
| Back-up Nominal Apparent Power (VA) | 20000.0 |
| Max. Continuous Charging / Discharging Current(A) | 50/50 |
| Max. Apparent Power Output to Utility Grid (VA) | 22000 |
| Brand | GoodWe |
|---|---|
| Inverter Type | Hybrid Inverter |
| Inverter Rating | 20kW |
| Number of Phases | Three Phase |
| No. MPPTs | Up to 3 |
