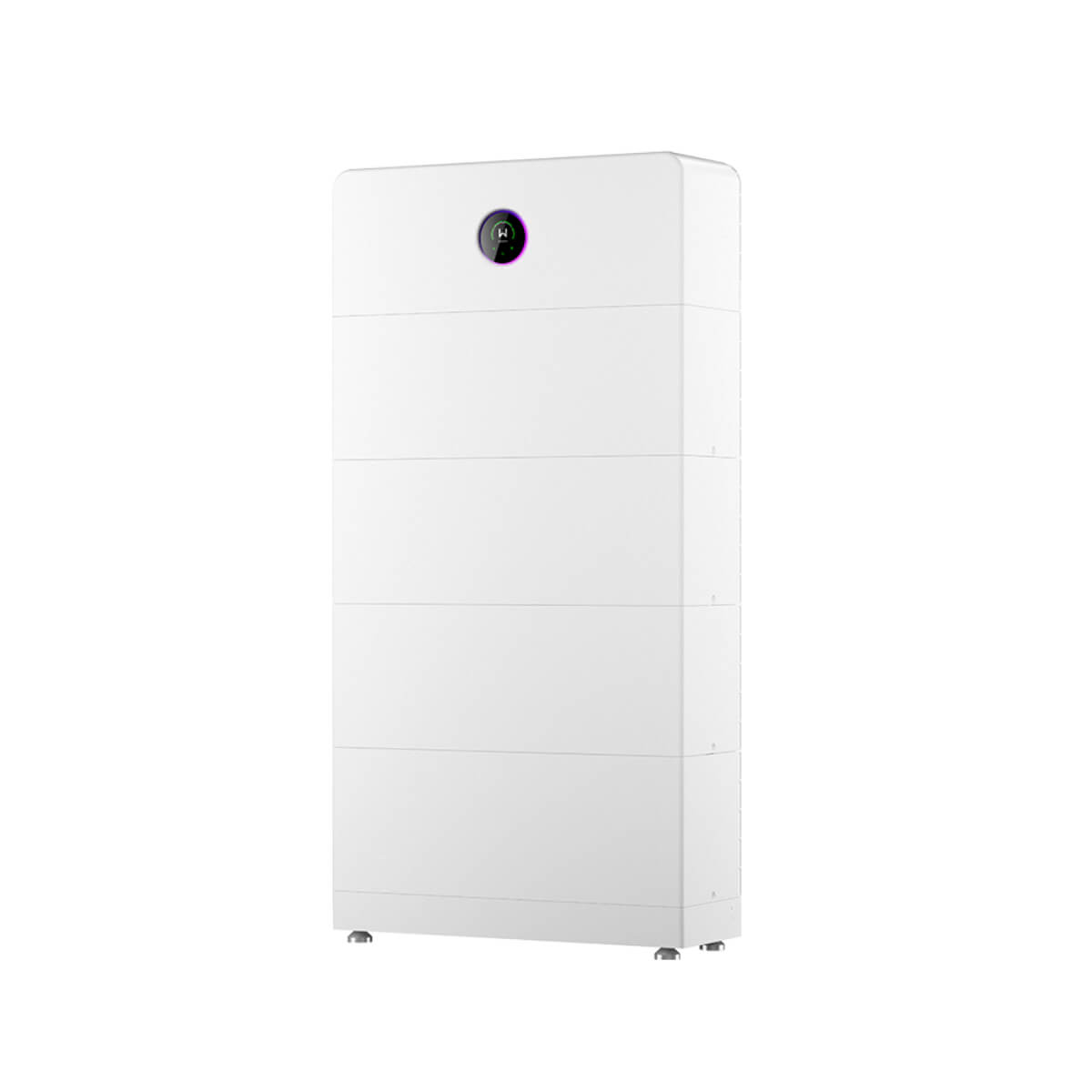

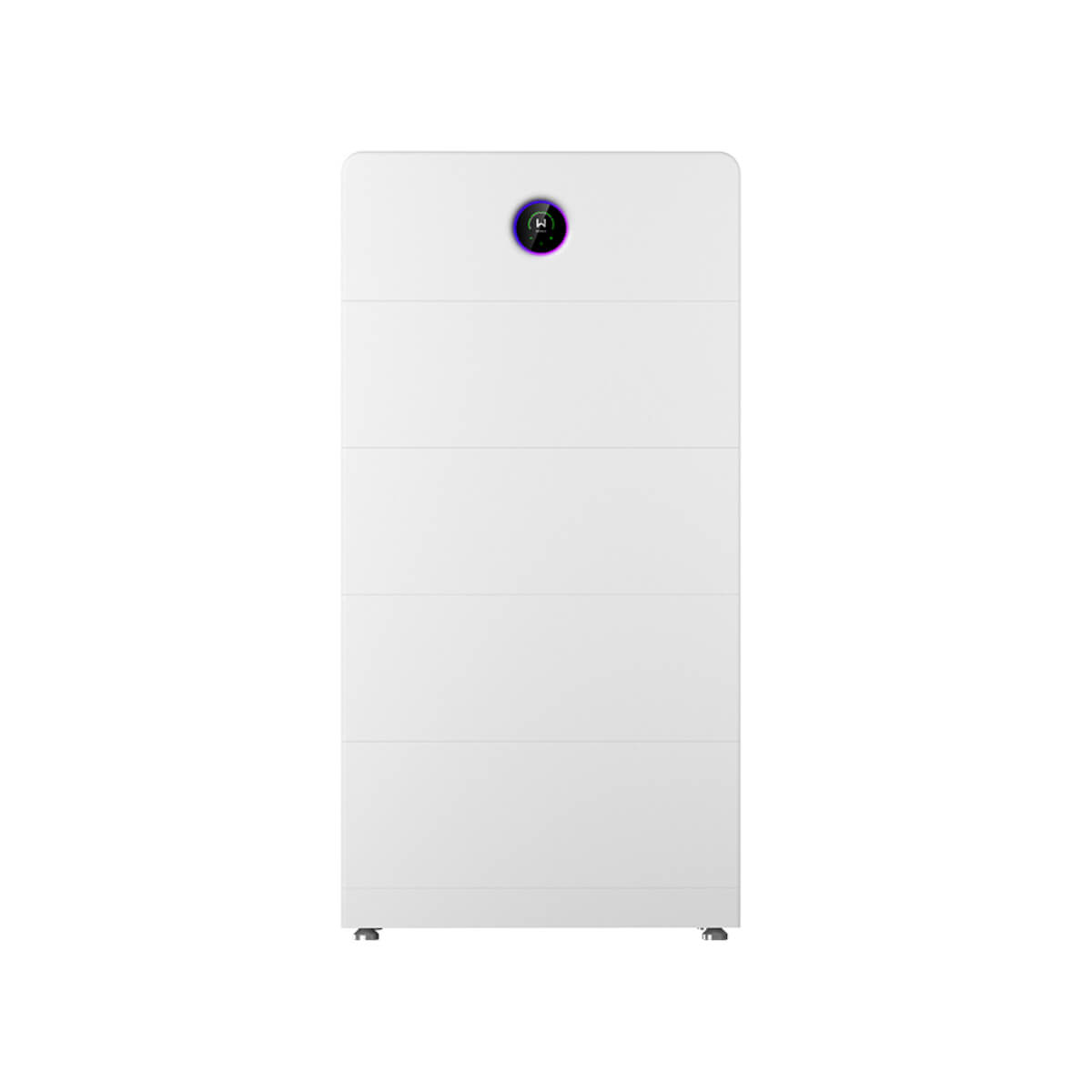

GoodWe 3kW All In One ESA Hybrid Inverter with Dual Tracker DC & AFCI
Original price was: £863.28.£719.40Current price is: £719.40. Ex. VAT
The GoodWe 3kW ESA Hybrid Inverter is an all-in-one solar and storage solution featuring a pre-wired, modular design. It supports 200% PV oversizing, 63A backup output, and rapid 1C energy cycling.
This Hybrid inverter comes with WiFi and Lan Dongle and CT clamp that has up to 10m cable, Energy meter is included in the system. FloorStand is also included with the inverter and can hold up to 6 batteries and the inverter.
Inverter Only
134 in stock
The GoodWe ESA Series is a fully integrated all-in-one solar and storage solution that combines inverter and battery in a pre-wired, modular design-making installation significantly faster and easier. Engineered for flexibility, the ESA system allows seamless expansion to meet evolving energy needs, with scalable battery capacity for future upgrades. With its streamlined setup, the ESA Series can reduce installation time by up to 50%, making it an ideal choice for efficient and adaptable residential energy systems. It also supports dynamic tariff optimization with AI-driven EMS.
Key Features
- 1C charge/discharge for rapid energy cycling
- Fanless design for quiet operation, noise <30dB
- Dual output ports for simplified installation & off-grid capability
- Heating mode ensures reliable performance even in -20?
- 20A per string & 200% PV oversizing
- Flexible battery mixing with different capacity or old&new batteries
- Support full backup load with 63A output
Optimized Performance
The ESA energy storage system is engineered for high efficiency and fast energy response, featuring a 1C charge/discharge rate that enables rapid energy cycling. With support for 20A input per string and up to 200% PV oversizing, it maximizes solar energy utilization even under varying conditions.
Flexible & Adaptable Applications
The ESA energy storage system is designed to adapt to evolving energy needs with maximum flexibility. It supports mixing of old and new batteries, allowing easy system expansion. Each stack accommodates up to 6 battery modules, scalable to 48 kWh, providing tailored storage capacity for different scenarios. With 63A full backup output, ESA ensures reliable power supply for entire residential or small-scale C&l loads during outages.
| Model | GW3K-EHA-G20 |
|---|---|
| Max. Input Current per MPPT (A) | 20 |
| Battery Voltage Range (V) | 350 ~ 550 |
| Max. Continuous Charging / Discharging Current (A) | 11.9 / 8.7 |
| Max. Apparent Power to Grid (VA) | 3000.0 |
| Back-up Nominal Apparent Power (VA) | 3000.0 |
| Brand | GoodWe |
|---|---|
| Inverter Type | Hybrid Inverter |
| Inverter Rating | 3kW |
| Battery Rated Capacity | 5-48kWh |
| Number of Phases | Single Phase |
| No. MPPTs | 2 |
| Stackable | Yes |
| Battery Type | Battery Cabinet |
