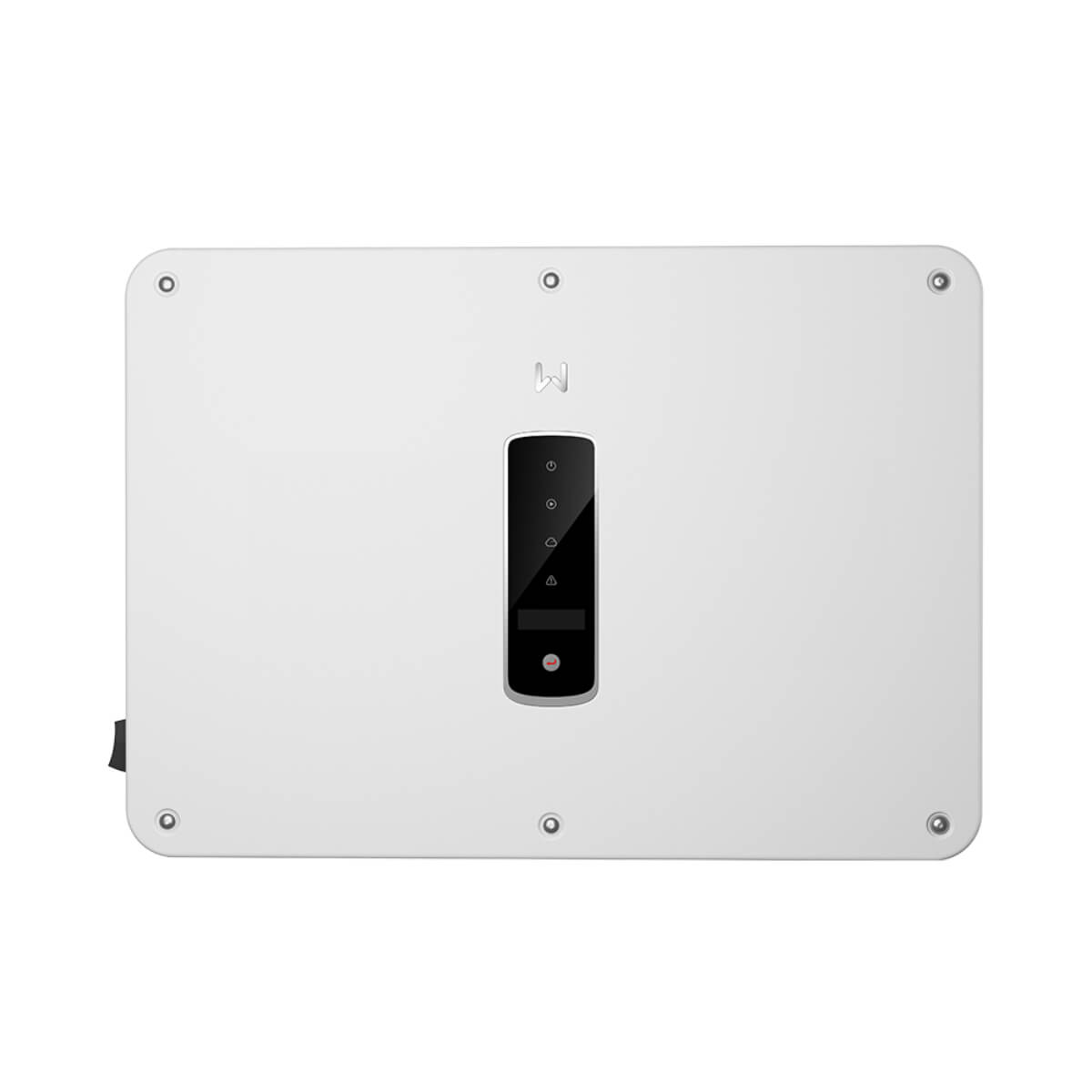

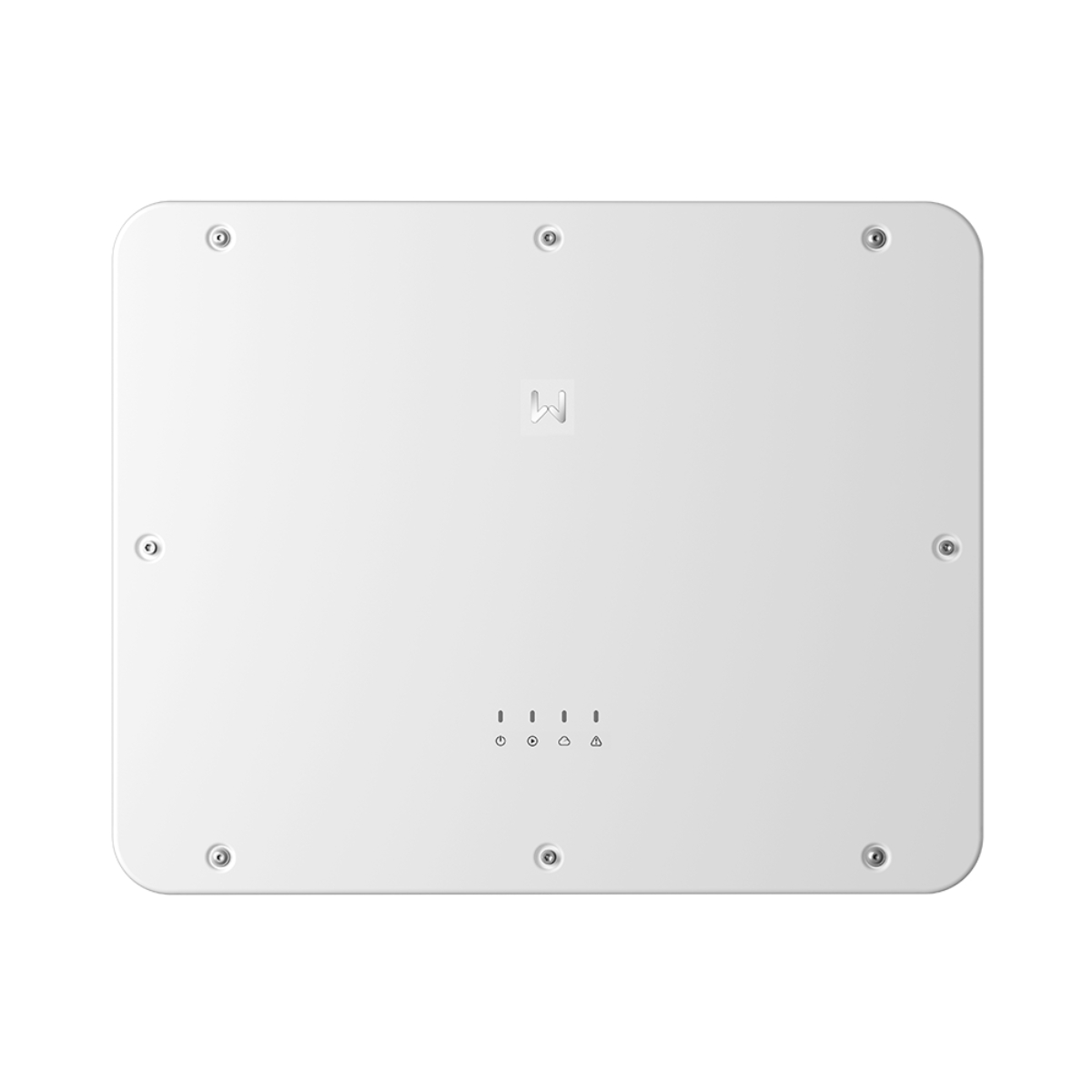

GoodWe 60kW SMT Inverter with 6 MPPT DC & AFCI

The SMT G2 Series string inverters (35-80kW) are designed for C&I applications, delivering high energy yields and exceptional power density. The 35-50kW models are tailored for low-voltage (127/220Vac) installations. Across the range, support for high-power PV modules is ensured through multiple MPPTs and up to 21A input current per string, delivering consistently optimized performance. The SMT G2 Series comes in two designs: a compact, ultra-low-noise version for the 35/37.5/60kW models, and a reinforced, high-power-density version for the 50/75/80kW models. For reliability, the series includes Type II surge protection on both DC and AC sides, with optional AFCI for enhanced protection.

Key Features

• Remote data monitoring
• Up to 200% DC input oversizing
• Lightweight 42 kg design with <50 dB full-load noise
• IP66 protection for outdoor installation safety
• Compatible with 182/210mm modules
• Lightweight 42 kg design with <50 dB full-load noise

Flexible & Adaptable Solutions

The SMT G2 series offers two distinct ranges to meet diverse project requirements. The 35-60 kW models deliver cost-effective flexibility with a lightweight, low-noise design, making installation simple even in compact or noise-sensitive environments. The 50-80 kW models emphasize high yields and power density, with a 6-MPPT design and support for 182/210 mm high-current modules. From small rooftops to ground-mounted plants, SMT G2 provides the right balance of value and performance.

Consistent Efficiency & Reliable Protection

The SMT G2 Series supports up to 200% DC oversizing and achieves a maximum efficiency of 98.8%, ensuring optimal energy generation under varying conditions. With Type II surge protection, IP66-rated durability, and optional functions such as AFCI, PID recovery, and night SVG, it offers robust protection and dependable performance for long-term operation.
