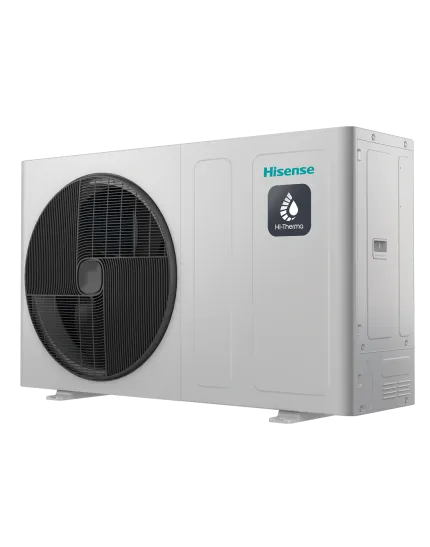

Installation Pack for Hisense Heat Pumps

The Hisense Hi-Therma Heat Pump Installation Pack has been specifically designed to ensure optimal performance and seamless integration with the Hisense Hi-Therma Monoblock heat pump system. This comprehensive installation pack includes all the essential components needed for a reliable and efficient setup, making the installation process straightforward and hassle-free for professionals.

The pack includes accessories such as the Hisense flexible hoses, buffer tank, and anti-freeze valves, which are critical for ensuring the durability and performance of the heat pump, especially in colder climates. The inclusion of Honeywell 28mm three-port valves and sealed system kits ensures that the system is well-regulated and operates with maximum efficiency.

• Hisense FOC Included Accessories: Includes a controller, a shut-off valve, two shut-off valves with filters, and a drain nozzle.

• SF4060: Strutfoot SFR 600mm foot with channel, designed for supporting air source heat pumps (ASHP).

• M10X40SN: M10x40 stud nut BZP, used for securing the strutfoot.

• FH-500-28F: ASHP flexible hose, 500mm in length, 28mm in diameter, with 1” FBSP and 19mm insulation.

• Anti-Freeze Valves: 28mm anti-freeze valves to protect the system during colder temperatures.

• 32A AC Isolator: A 4-pole IP65 enclosed isolator, suitable for 4.4kW-8kW ASHP systems.

• 40Amp Stag Isolator: A 4-pole isolator with IP65 protection, suitable for 10kW-16kW ASHP systems.

• Buffer Tank: A buffer tank for use with 10kW-16kW ASHP systems.

• Buffer Tank Connection Kit: Includes an air vent and drain-off valve for installation.

• HTS-E1000A1 Sensors: Two sensors required, one for hot water and one for heating.

• Honeywell 28mm Valve: A 28mm three-port hot water divertor valve for controlling water flow.

• 18L Expansion Vessel: An expansion vessel for the heating system to accommodate pressure changes.

• Sealed System Kit: A sealed system kit (SSFK 1/2”) for ensuring system integrity.

• Nipple for Hisense Flexi Hose (960305): Brass hexagon nipples required for secure connections in the system.

• ST1560 Circulating Pump: Stuart ST 15/60 (130) circulating pump for maintaining water flow.

• Intaklean Magnetic Filter (IKHPMF28): A 28mm magnetic filter designed to capture fine particles and debris in the heating system.

This pack contains everything required for an efficient and reliable installation process.
