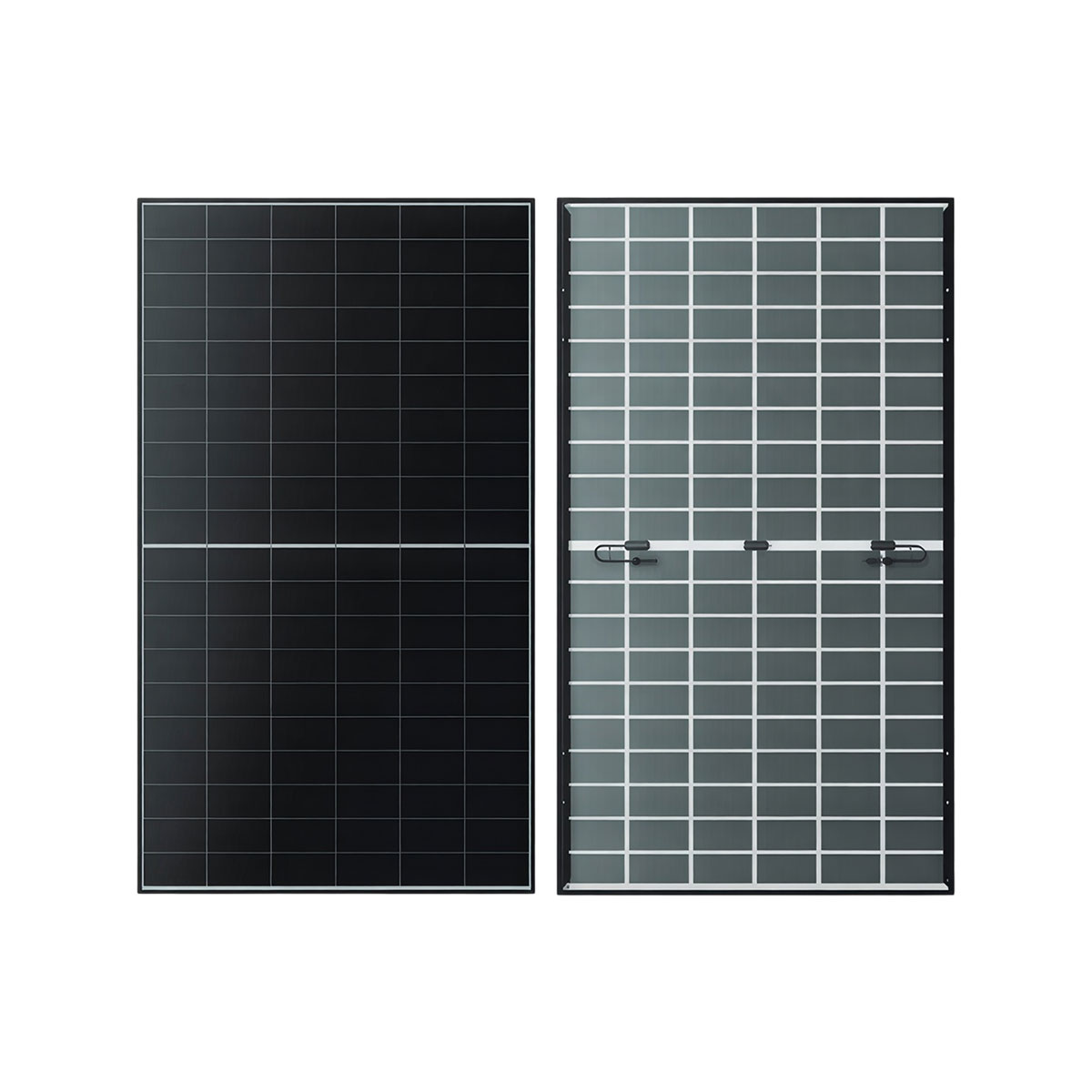

Longi Hi-Mo X10 HVD SDM1 530W Dual Glass Black White Bifacial

The Longi X10 HVD 530W panel achieves a high efficiency of 23.5% using HPBC2.0 technology. It is designed for flexible installation and is suitable for short frame clamp mounting with high mechanical loading. It is also designed with safety in mind and achieves a fire rating class A test report.

What is HPBC 2.0?

HPBC 2.0 stands for Hybrid Passivation Back Contact cell technology (Generation 2), independently developed and named by LONGi. HPBC 2.0 continues the excellent genes of the HPBC 1.0 cell technology, based on a high-end BC technology platform, primarily characterised by the absence of grid lines on the front side . It is an innovative BC cell technology, based on a comprehensive optimisation of cell substrates, hybrid passivation, and process technologies. Its performance, reliability, and functionality have been significantly enhanced, showing a clear generational difference from the mainstream market’s general cells.

Technical information

Electrical

• Peak power: 530W
• V _mpp: 37.17V
• V _oc: 44.95V
• I _mpp: 14.26A
• I _{sc: 14.90A}
• Bifaciality: 70±5%

System

• Weight: 28kg
• Dimensions: 1990 x 1134 x 30mm
• Product warranty: 25 years
• Performance Warranty: 30 years
• Efficiency: 23.5%
• Product code: LR7-60HVD-530M
• Traceability: SDM1
