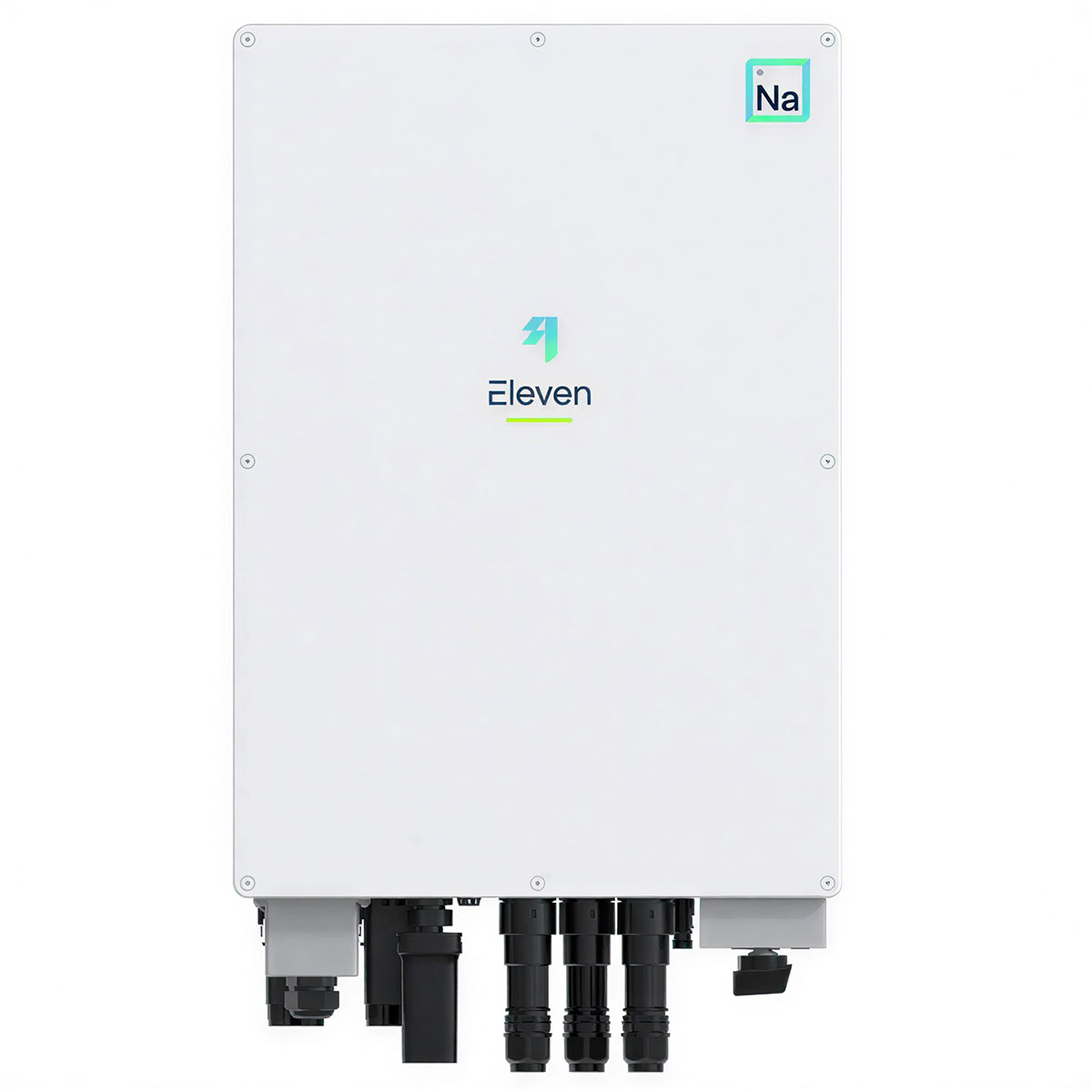

Eleven Energy Mediterranean Sea 12kW 1ph Hybrid Inverter

The Eleven Energy Mediterranean Sea Hybrid Inverter is optimised for sodium-ion batteries, using silicon carbide technology which offers a higher efficiency and longer lifespan than traditional silicon semiconductors.

The EL12000 has a dedicated backup port which provides emergency power supply and is Smart Tariff compatible allowing you to charge batteries at off-peak times for cheaper energy. It can also be connected to the cloud for real time visibility monitoring and the ability to configure your system from anywhere. It’s free to use the inbuilt smart algorithm to automatically charge and discharge the battery to make best use of time of use tariffs.

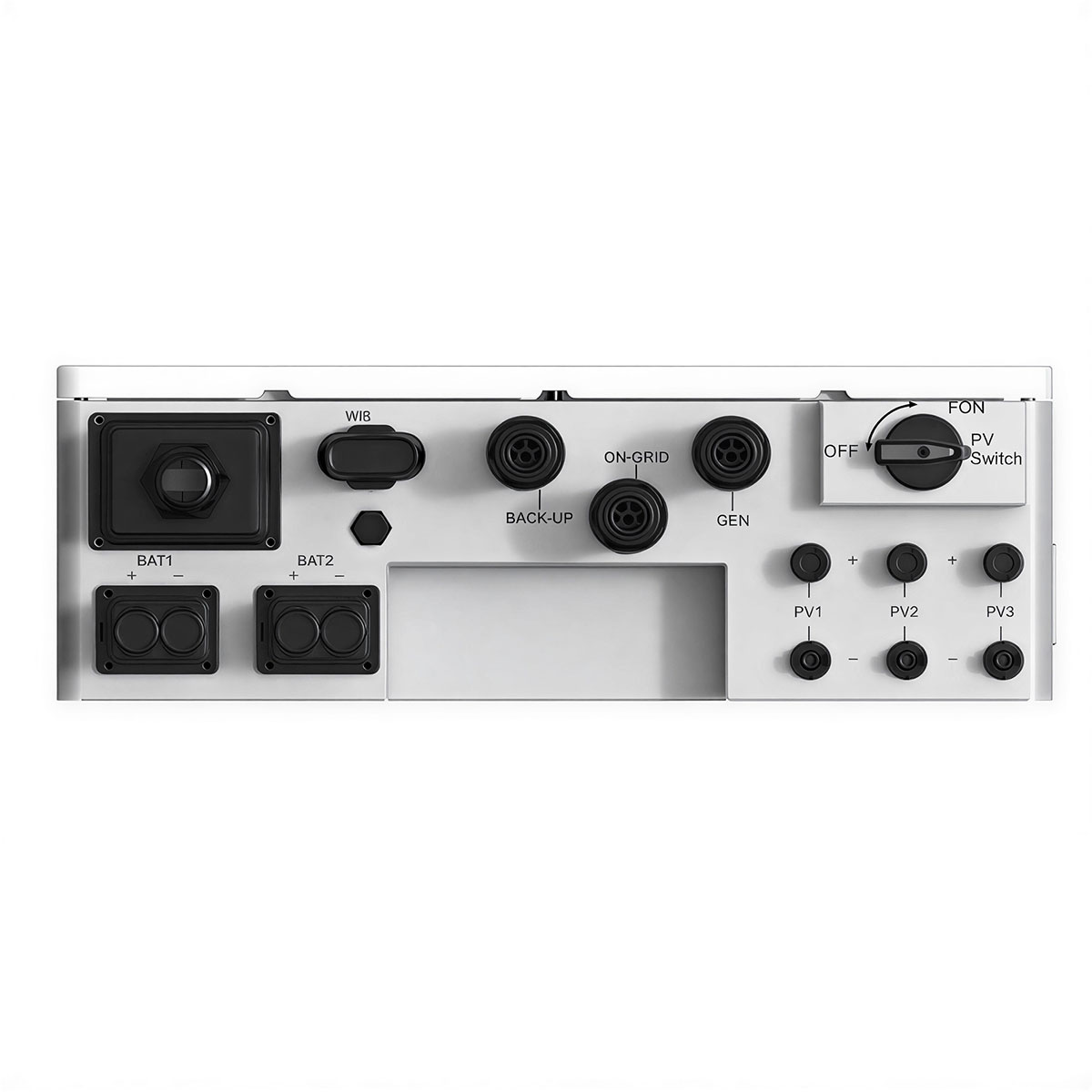

The low start up voltage and wide MPPT range for 3 independent MPP Trackers mean the EL12000 allows the PV system to produce energy even in sub-optimal conditions. The EL12000 has an ingress protection rating of IP65 making it durable in indoor or outdoor installations and offers safety features like anti-islanding protection and surge protection.

Includes Wifi/Bluetooth dongle and smart meter with CT clamp.

Inverter to battery cables

For connecting to Volta batteries: a inverter to batterycable is needed. A communication cable is also needed, for this you can use a Philex RJ45 Cat 6 Ethernet Cable, or with CAT cablewith two added RJ45 modular plugs.

For connecting to Galvani batteries: the necessary power cable is included with the Galvani battery. A communication cable is needed, for this you can use a Philex RJ45 Cat 6 Ethernet Cable, or withCAT cablewith two added RJ45 modular plugs.

System

• Weight: IP65
• Dimensions: 34kg
• Max efficiency: 140V
• IP rating: 98.2%

AC attributes

• Number of phases: 1.0
• Nominal output power: 12kW
• Max output current: 62A

DC attributes

• Max PV power: 18kWp
• Max I per MPPT: 20A
• MPPT voltage range: 800V
• Start-up voltage: 130-800V
• Max Isc per MPPT: 24A
• No. of MPPTsMax strings per MPPT: 3.0
• Max input voltage: 1.0

Battery parameters

• No. of battery inputs: 465 x 655 x 165mm
• Battery voltage range: 2
• Max charging /discharging current: 33-60V
